Description

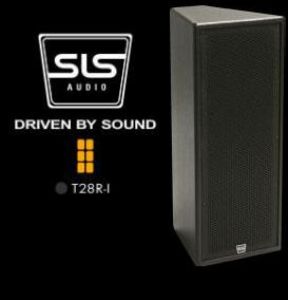

The T28R is a full-range passive extremely high quality dual 8” two-way design. It serves as a multipurpose box that offers a design aimed at very low distortion with a lower maximum SPL. The T28R high frequency section features a high performance PRD500 planar ribbon transducer designed and manufactured by SLS Loudspeakers. The unique design and properties of the planar ribbon driver allows for a very clear delivery and transient accuracy even at the limits of its performance. The PRD500 is contained within a 110 degree die cast aluminum waveguide that is rotatable within the cabinet. The low frequency section uses two 8” drivers identical to our highly acclaimed S8R studio monitors. These drivers offer the best balance between maximum performance and the SPL capability for live applications. The crossover maintains the high quality using heavy gauge air core inductors and polypropylene capacitors. The T28R-I offers just flypoints for installation applications.

Key Features
PRD500 ribbon high frequency line source module delivers unsurpassed sound quality
Studio 8” low frequency drivers
7 to 1 safety margin for rigging points
Handles and pole socket (T28R only)
110 degree wide horizontal coverage with rotatable ribbon
¾” 13 ply Baltic Birch cabinet
Applications

Developed for a wide range of professional applications where the highest quality and intelligibility of sound is required

Portable PA for acoustic acts Installation spot fills
 The ultimate in permanent PA for lower SPL requirements
