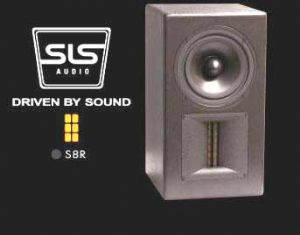

The S8R is a full-range 8” two-way world class studio monitor. It also serves as a multipurpose loudspeaker enclosure that offers high SPL at very low distortion. This speaker features the high performance PRD500 planar ribbon high-frequency transducer designed and manufactured by SLS Loudspeakers. The unique design and properties of the planar ribbon driver allows for very clear delivery and transient accuracy even at the limits of its performance. The PRD500 is contained within a 120-degree die cast aluminum waveguide that can be rotated 90-degrees within the cabinet. The waveguide also eliminates edge diffraction from the sides of the cabinet. The low frequency section uses a single high-powered 8” driver designed with an integral phase plug and aluminum voice coil former for higher power handling. The audiophile crossover utilizes high quality heavy gauge air core inductors and polypropylene capacitors. The CT8R variation offers a front slot port to allow for placement close to walls and inside cabinetry.
PRD500 ribbon high-frequency driver delivers unsurpassed sound quality
Open and clear sound at high SPL due to advanced transducer technology
Rear Mounted Attachment Points for 3rd Party Hardware
Bi-Wire Capability
Extensively braced MDF cabinet construction

Applications

Developed for studio monitoring where the highest quality and
neutrality of sound is required

Console placement high SPL monitoring Installation systems for foreground, delay fill or background music Home Theater setups
