|SLS CM208WTB Ceiling Mount Dual Version 400w 8ohm.
It is specifically designed for installation in tile grid ceilings. The input section includes a low pass crossover as well as high passed outputs. |

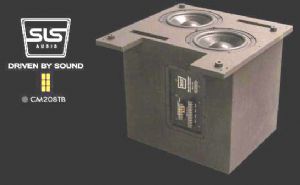

SLS CM208WTB Ceiling Mount Sub Woofer Dual Version 400w 8ohm
for Tech Data Sheets/Application Notes
The CM208W-TB is a dual 8” subwoofer intended for background music playback. It is specifically designed for installation in tile grid ceilings.
The input section includes a low pass crossover as well as high passed outputs that incorporate our series parallel network for driving four 8 ohm
satellite speakers at an 8 ohm total load. Additionally, by removing a pair of jumpers the subwoofer can be used with DSP based bi-amp designs while still incorporating the series parallel network for the high pass satellite outputs to avoid using 70V transformers.
As an option the subwoofer can be ordered with an internal 70V 60W transformer. This transformer is in circuit before the crossover so the subwoofer and four CM Series satellites can be powered by one 70V amplifier channel if desired.
Operating range extending down to 32Hz using dual 8” poly cone drivers
Small format design
Built in crossover with high pass series/paralell outputs for use with other CM
series speakers. This configuration can also be biamped with DSP crossover
based designs for maximum performance
Optional factory installed 70V 60W transformer that can power the subwoofer
and the satellites or just the subwoofer with one 70V amplifier channel
Barrier Strip inputs and outputs
Comes with an installation ring that can be delivered in advance of the
subwoofer for mounting during project construction.
Enclosure and installation ring painted with a Class A fire rated finish
