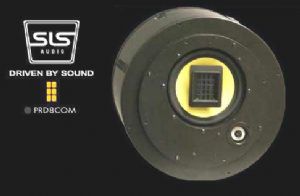

The PRD8COM is an advanced professional in-ceiling loudspeaker that provides high fidelity performance for commercial applications. The PRD8COM combines a proprietary 3” Neodymium high frequency ribbon driver with a high-tech cone 8” low frequency driver. The low frequency transducer features a high efficiency motor structure with high excursion capabilities and very low distortion. An advanced Kevlar TM cone results in excellent clarity even at extreme SPL output levels. A rotary switch positioned on the front panel allows for multiple 70V power tap selection using a high quality transformer as well as for 8 ohms direct connection. The PRD8COM uses high quality crossover components like polypropylene capacitors to insure minimum distortion and preservation of accurate signal structure and resolution. The PRD8COM loudspeaker has two options of premium metal back boxes, a 0.5 cu.ft. and a 1 cu.ft. Internal volume are available. They can be mounted in a hard deck ceiling or in a suspended tile ceiling. Each backbox is shipped with a pair of channel rails.

Key Features

3” ribbon high frequency ribbon delivers unsurpassed sound quality
Open and clear sound at high SPL due to advanced transducer technology
High quality crossover components
60W high performance low loss transformer for 70V operation
8 ohm bypass for high fidelity applications


Applications Developed for the highest quality ceiling speaker uses

High Ceiling/High SPL Dance Studios  Under Balcony Fill Foreground Music
