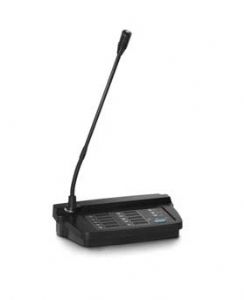

HRM-100MH 10 Zone PTT Paging Microphone LED Indicators RJ45 In/Out HRM-100MH
view large image
HRM-100MH 10 Zone PTT Paging Microphone LED Indicators RJ45 In/Out Aux Input Mic/Line Priority Set Function Up To 4 Mics Can Be Connected 24VDC Pwr
HRM-100MH 10 Zone Paging Microphone

10 Zone Paging Microphone is the Paging Microphone of All in One BGM & PA system which allows to page into any individual zone, any combination of zones or all call.
 Feature

 10  Zone Selection Keys, Input Selection Buttons, Momentary PTT-key For Calls
 LED Indications For Zone Selection, Normal/Busy Indicator
 Priority Set Function
 Address Setting Function, Support to Connect With Main Amplifier HBA-3240A / 3480A.
        Connect up To 4 Microphones
 6.35mm Jack Line input at Back, Selectable Microphone or Line Input
 1 * RJ45 Input
 1 * RJ45 Output
 Mic Volume Control
 Line Volume Control
 24VDC Power Supply



Models HRM-050MH HRM-100MH
Weight 0.75KG 0.85KG
Dimensions 410mm*160mm*115mm 410mm*160mm*115mm
Nominal output level 1V
Input sound level(max) 110db SPL
Distortion <1% (maximum input)
Nominal Sensitivity 85dB SPL
Frequency response 100Hz to 16KHz
Output impedance 600Ohm
Selections Chimes: 2;  Priorities: 3;  Address: 4
Input 6.35mm Jack microphone mono input unbalanced
Sensitivity:775 mV; Impedance:10K Ohm; S/N:>75dB
Relative Humidity < 95%
Operating Temperature Range -10°C to +45°C
Power Supply Voltage range:24VDC power supply
Current consumption:<100mA



RRP: $258.00 inc GST
