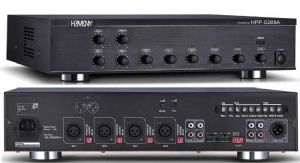

Pre-Amplifier It is a versatile, high-performance unit that comes with four microphone inputs and four auxiliary inputs. It is a highly specified amplifier with a low signal to noise ratio. HPP-0208A Pre-Amplifier
Pre-Amplifier It is a versatile, high-performance unit that comes with four microphone inputs and four auxiliary inputs. It is a highly specified amplifier with a low signal to noise ratio. It fulfills a wide variety of public address requirements at surprisingly low cost. The volume of each microphone and the auxiliary input can be controlled independently.
HPP-0208A Features 4 Auxiliary Input,1~2 RCA unbalanced input,3~4 balanced screw terminal input Auxiliary Selector 4 x Balanced MIC Volume Control and 4 x Auxiliary Volume Control Master Remote Volume Control Treble, Bass Volume Control TEL, Mute Short-Circuit Trigger Connector TEL Connector 2 x RCA Output 1 x XLR Line Output
Power Supply 230Vac ± 10%, 50/60 Hz Max power consumption 10VA Protection 1A ac fuse Distortion <0.5% @ rated Outputs, 1kHz Bass Control -10/+10 dB @ 100 Hz Treble Control -10/+10 dB @ 10 KHz Frequency Response 20 Hz - 20 kHz (+1/-3 dB @ -10 dB ref. rated Outputs) 4 x MIC Input XLR,balanced,24V Phantom Power(ON/OFF Switch) Sensitivity: MIC: 5 mV; Line: 775mV; Impedance :> 1k Ohm; S/N :> 60dB. 4 x Aux Input RCA stereo socket bridged mono, Screw terminals, balanced; Sensitivity:775 mV; Impedance:10k Ohm; S/N:>75dB. Tel Input Screw terminals, balanced; Sensitivity: 300 mV; Impedance: 600 Ohm; S/N: >75 dB. Music Output RCA mono; Impedance: 600 Ohm; Output Level: 775mV. Line Output RCA mono; Impedance: 600 Oh; Output Level: 775mV. Control Treble, Bass ,Mic1Vol, Mic2Vol, Mic3 Vol, Mic4Vol, AUX1 Vol,AUX2 Vol,Aux3 Vol, AUX select button, phone mute trigger connector, phone connector, LED Contrast and On/OFF Switch Indicators VU-meter ( LEDs for -10,-5,0,3 and 6dB) Relative Humidity < 95% Operating Temperature Range -10°C to +45°C Weight 4.8KG Dimensions 234mm x 430mm x 100mm
|
