Mini Amplifier 2 x 40 watt USB in and Mp3 player

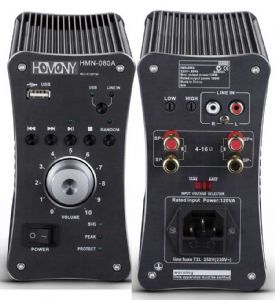

 HMN-080A Mini Amplifier

The Mini Amplifier is an economical solution for small installations including factories, classrooms, retail shops, warehouses, boardrooms, restaurants etc. It is the smallest amplifier among Homony Product range. It offers outstanding performance and features an USB input with built in Mp3 player and an auxiliary input. It suits low impedance (4-16 Ohm) speakers.
 Feature
 2 x 40 watt at Ohm
 1 USB Input
 1 AUX Input
 Main Volume Control
 Treble and Bass Volume Control
 Low Impedance (4-16 Ohm) Stereo Output
Specification

Weight 3.2 kg
Dimensions 200mm ╳ 80mm ╳ 148 mm
Rated Power 2x40W @8 Ohm
Bass Control   -14/+14 dB @ 100 Hz
Treble Control   -14/+14dB @ 10 KHz
Power Supply IEM Power Connector:  230/115Vac ± 10%, 50/60 Hz
Frequency Response 80 Hz - 20 kHz (+1/-3 dB @ -10 dB ref. rated Outputs)
Distortion THD = 10%  40WTHD= 0.5%  30W
Aux Inputs  RCA stereo socket;  Sensitivity:775  mV;  Impedance:>10k Ohm;  S/N:>90dB
USB Input Max.16G; File System: FAT,  FAT32; File Format: .MP3
Speaker Max/rated Outputs: power 4-16 Ohm
Control Source Selector, Key Function, Treble, Bass, Master Vol, , and  On/OFF Switch
Indicators Signal, Peak, Protect
Relative Humidity < 95%
Operating Temperature Range -10°C to +45°C
Storage Temperature Range  -40 to +70ºC
