| The Mini Amplifier 3 .2 x 20W @8 Ohm; 2 x 30W@ 4 Ohm. 1 X USB Input. 2 X AUX Inputs
LCD Display shows song name. Built in Bluetooth

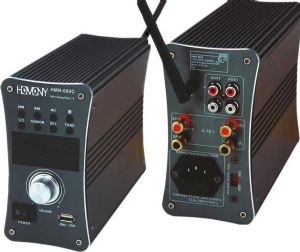

HMN-080C Mini Amplifier 3
The Mini Amplifier 3 is an economical solution for small installations including factories, classrooms, retail shops, warehouses, boardrooms, restaurants etc. It is the smallest amplifier with LCD display showing song name. It built Bluetooth. It offers outstanding performance and features an USB input with build in Mp3 player and two auxiliary inputs. It suits low impedance (4-16 Ohm) speakers.
Feature
2 x 20W at Ohm; 2 x 30W at 4 Ohm
1 X USB Input
2 X AUX Inputs
LCD Display shows song name
Built in Bluetooth
Main Volume Control
Treble and Bass Volume Control
IR Remote Control
Low Impedance (4-16 Ohm) Stereo Output
Specification
Weight 3.2 kg
Dimensions 200mm ╳ 80mm ╳ 148 mm
Rated Power 2x20W @8 Ohm; 2x30W @4 Ohm
Bass Control -14/+14 dB @ 100 Hz
Treble Control -14/+14dB @ 10 KHz
Power Supply IEM Power Connector: 230/115Vac ± 10%, 50/60 Hz
Frequency Response 80 Hz - 20 kHz (+1/-3 dB @ -10 dB ref. rated Outputs)
Distortion THD = 10% 40WTHD= 0.5% 30W
Aux Inputs RCA stereo socket; Sensitivity:775 mV; Impedance:>10k Ohm; S/N:>90dB
USB Input Max.16G; File System: FAT, FAT32; File Format: .MP3
Speaker Max/rated Outputs: power 4-16 Ohm
Control Source Selector, Key Function, Treble, Bass, Master Vol, , and On/OFF Switch
Indicators Signal, Peak, Protect
Relative Humidity < 95%
Operating Temperature Range -10°C to +45°C
Storage Temperature Range -40 to +70ºC
|
