The VP29 is a simple yet integral part of the vintage home audio enthusiast. It’s circuitry is designed not only to provide the RIAA equalization curve, but smooth and quiet operation.

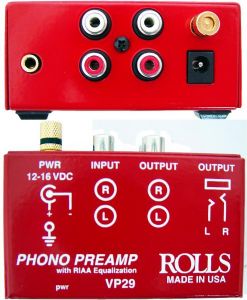

VP29 Phono Preamp
    RIAA Equalization
    RCA inputs/outputs - 1/8 inch (3.5mm) TRS output.
    AC adapter included
Specifications
    I/ O Connectors: RCA, 1/8
    Input Sensitivity: 35 dBV gain @ 1kHz, 47k Ohms Input Z
    Input Capacitance: 5pf + cable capacitance
    Input Impedance: 50k Ohms
    Output Impedance: 1K Ohms
    Max Output Level: >10dB @ 1kHz at at 1% dist.
    Frequency Response: + / - 1.5dB 20 Hz - 20 kHz (Conforms to RIAA Equalization Curve)
    THD: .02% @ 1 kHz
    S/N Ratio: >80 dB unweighted
    PWR: 12 - 18 VDC
    Size: 3.25" x 2" x 1.5"
    Weight: 1 lb
