| The MX22s is a 2 Channel mixer for mixing a 1/8" line signal such as a laptop computer or Ipod, and a stereo RCA signal such as a CD player.for audio visual and aerobics studio application The MX22s Mini Mix
The MX22s is a 2 Channel mixer for mixing a 1/8" line signal such as a laptop computer or Ipod, and a stereo RCA signal such as a CD player. The MX22s has enough output to drive a power amplifier directly, and is ideal for audio visual and aerobics studio applications. The MX22s can be configured as either Stereo (default) or Mono, by moving a shorting jumper on the PCB. Power adapter is included.

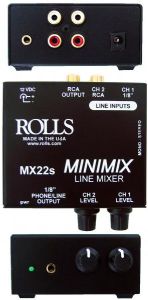

The MX22s Mini Mix
1/8” and RCA line level signals
Dual RCA Stereo output
Individual controls for each channel
Specifications
CH1 Max Gain: 32 dB
CH2 Max Gain: 20 dB
CH1 Input Impedance: 10 Ohms
CHI Input Impedance: 20K Ohms
Output Impedance: 50 Ohms
Power: 12 VDC 100 mA
Size: 2.75" x 2.35" x 1.5" (7 x 6 x 3.8cm)
Weight: 1 lb (.45Kg)
|
