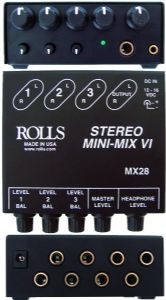

MX28 is a three-channel true stereo line mixer. Each channel has an individual 1/4" input for the right and left sides, and the outputs are individual right and left 1/4" jacks. MX28 Stereo MINI-MIX VI
The MX28 is a three-channel true stereo line mixer. Each channel has an individual 1/4" input for the right and left sides, and the outputs are individual right and left 1/4" jacks. Each channel has a level and pan (balance) control. The Master Level controls the output volume and the Headphone Level controls the level to the two headphone outputs.
The MX28 Stereo MINI-MIX VI 3: Stereo 1/4” Stereo Inputs True stereo 1/4” outputs, unbalanced Two Headphone Outs (1/4” and 3.5mm) Pan control for each channel Specifications Input Impedance: 10K Ohms Output Impedance: 100 Ohms Max Gain: +27 dBV Max Input Level: +30 dBV Max Output Level: +13 dB Frequency Response: 20Hz - 20kHz +/- 1 dBV THD + Noise: <.005% Power: 12 VDC 150 mA adapter (center negative) Size: 4.25" x 1.75" x 4.5" (WxHxD) Weight: 1.2 lbs. (.49 Kg)
|
