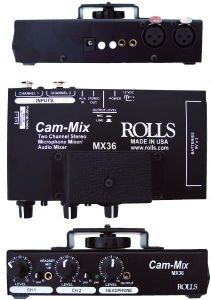

MX36 Cam-Mix is a two channel microphone mixer. Although having many uses, this little mixer was originally designed with the video camera operator in mind. MX36 Cam-Mix
the MX36 Cam-Mix is a two channel microphone mixer. Although having many uses, this little mixer was originally designed with the video camera operator in mind. Easy-access microphone Level and Pan controls, and smart Input/Output jack placement make the MX36 ideal for the live recording enthusiast. Two 9 volt alkaline batteries ensure adequate signal strength as well as phantom power for your favorite condenser microphone. Included 3.5mm stereo cable makes plugging the MX36 into your camera quick and easy. MX36 Cam-Mix 9V Battery or AC adapter operation 2 Mic Inputs +18VDC Phantom Power 3.5mm Stereo Output 3.5mm Stereo Headphone Output Pan control on each channel Auxiliary 3.5mm Input Mic/Line Switch for each XLR Input Included 12" 3.5mm stereo cable Specifications Input Impedance: Mic - 600 Ohms or greater (XLR), Aux - 47K stereo (3.5mm) Output Impedance: 50 Ohms THD + Noise: .02% S/N Ratio: 110 dB Frequency Response: 20 Hz - 30 kHz (+0 / -1 dB) Max Output Level: + 14 dB Max Input Level: +20 dB Max Gain: +70 dB Batteries: 2 X 9V Alkaline Current Draw: 30 mA Phantom Power: +18 VDC Input Connectors: 2 Female XLR, 1/8” (3.5mm) Output connectors: 3.5mm Stereo Main Out, 3.5mm Headphone DC Power Jack: (5.5mm X 2.1mm Tip Negative) Size: 6.3”w x 3.7”d x 1.4” h Weight: 1 lbs.
|
