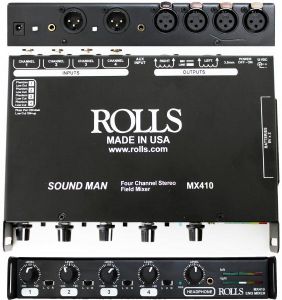

MX410 4 channel, microphone mixer with balanced XLR inputs
ROLMX410
view large image
MX410 is a four channel, microphone mixer with balanced XLR inputs and outputs. The unit is ideal for the broadcast and video markets
MX410 Field Mixer
The MX410 is a four channel, microphone mixer with balanced XLR inputs and outputs. The unit is ideal for the broadcast and video markets. It has the same features of other ENG / portable mixers without the extremely high price. Applications include: * DV Field Production. * Electronic News Gathering. * Location Recording (Dialogue and Music). * Digital Recording. * Broadcast Remotes. * Desktop Mixing for Video Post Production.
MX410 Field Mixer
Four balanced XLR Inputs.
Two transformer-balanced XLR Outputs
Switchable Output Level ( Line level, or mic)
Switchable Phantom Power for each input.
Level controls for each channel.
3.5mm Headphone Output and Level control.
Canvas case with shoulder strap included.
Rolls PS27 external power supply included.
Powered by two 9 volt batteries or the included power supply
Specifications
Input Impedance: 600 Ohm bal. /10K Ohm Aux.
Output Attn. Switch: 0/-30 dB
Self Noise: -65 dB maximum, -90 dB typical
Max Gain: +55 db
S/N Ratio: 115 dB
Frequency Response: 20 Hz - 20 kHz | +0, -3 dB
Max Input: -20 dBV
Current Draw: 30 mA with no Phantom Power or Signal.
Phantom Power: +18 VDC
Connectors: 4: Female XLR, 2: Male XLR, 3: (3.5mm), 1 Center Negative power jack.
Power: 12VDC / < 200 mA
Size: 9" W x 6.75" D x 1.5" H
Weight: 2.45 lbs
RRP: $649.00
inc GST
