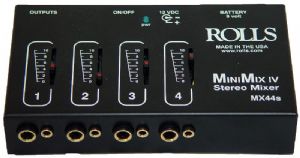

| The MX44s is designed to mix up to four stereo line-level signals such as instruments, CD players, DVD players, MP3 players, laptop computers, etc. to a single stereo output. MX44s Mini-Mix IV
The MX44s is designed to mix up to four stereo line-level signals such as instruments, CD players, DVD players, MP3 players, laptop computers, etc. to a single stereo output.
Four stereo inputs to one stereo output
1/4" and 1/8" TRS Stereo high-impedance inputs
1/4" and 1/8" TRS Stereo high-impedance output
Battery or AC operation
Specifications
Input Impedance: 10K Ohm
Output Impedance: 50 Ohm
Gain: 30 dB
Connectors:
Input: 4: 1/4" and 4: 1/8" (3.5mm) unbalanced
Output: 1: 1/4" and 1: 1/8" (3.5mm) unbalanced
Power: 9V battery, or Rolls PS27 12VDC adapter 12 VDC 100mA
Size: 6"w x 3.25"h x 1.25"d
Weight: 1.5lb (.5Kg)
Current drain 32ma nominal no load 15vdc
|
