> > > > MX 51s MIN1 4 ch mixer individual volume controls, headphone/line output.

MX 51s MIN1 4 ch mixer individual volume controls, headphone/line output.

ROLMX51s

view large image

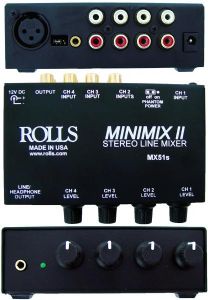

The MX51s Mini Mix 2 is small four-channel mixer with individual volume controls, and a headphone / line output. The unit has one XLR input along with an 1/8” input and 3 sets of stereo RCA inputs

MX51s 1 Mini-Mix 2

The MX51s Mini Mix 2 is small four-channel mixer with individual volume controls, and a headphone / line output. The unit has one XLR input along with an 1/8” input and 3 sets of stereo RCA inputs. It has enough gain and output level to connect to a power amplifier, with either RCA or 1/8” jacks. The MX51s is powered by an included ROLLS PS27 12 VDC adapter.

MX51s 1 Mini-Mix 2

    For mixing a microphone XLR input with up to three RCA input signals
    Four channels total
    Line / Headphone output level
    ROLLS PS27 AC adapter included
    Stereo RCA Line-Level Output

Specifications

    Input Impedance: 10K Ohms unbalanced each jack
    CH 1 Gain: 32 dB XLR jack (highest gain)
    Phantom Power: for CH 1 microphone XLR
    Ch2 Gain: 26 dB 1/8" and RCA
    Ch 3 and 4 Gain: 26 dB each RCA
    Output: 1/8" stereo and stereo RCA
    S/N Ratio: >90 dB
    THD: <.008%
    IMD(SMPTE): <.008%
    Power: ROLLS PS27 12 VDC adapter
    Size: 3" x 5" x 1.25" (8 x 13 x 3.2 cm)
    Weight: 1 lbs. (.45 Kg)

RRP: $119.00 inc GST
