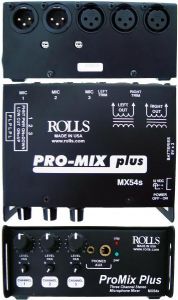

The MX54s Pro-Mix Plus mixes three microphones into two transformer balanced outputs. It has three XLR inputs, each with individually switchable phantom power, and Low Cut (100 Hz high pass filter) MX54s Promix Plus
The MX54s Pro-Mix Plus mixes three microphones into two transformer balanced outputs. It has three XLR inputs, each with individually switchable phantom power, and Low Cut (100 Hz high pass filter) switches, a Level control, and a Pan control. As mentioned, it has two transformer balanced, XLR outputs. A 1/4 inch Aux/Headphone output has been provided along with a Clip indicator, Power indicator, and Power switch. The unit is also powered by two 9-Volt alkaline batteries.
MX54s Promix Plus Mixes three microphones to stereo XLR outputs Output level controls for mic or line-level output Transformer isolated outputs Phantom Power and Low-Cut switches for each Mic input Battery and AC powered Handy shoulder strap mounts Switchable Low Cut filter (100 Hz high pass) for each channe
Specifications Input Impedance: 600 Ohms Output Impedance: XLR 600 Ohms THD + Noise: .02% S/N Ratio: 84 dB Frequency Response: 25 Hz - 16 kHz (+0 / -3 dB) Max Output Level: + 14 dB Max Input Level: -14 dB Max Gain: +60 dB Low Cut: -3 dB @ 100 Hz Current Draw: 20 mA Phantom Power: +18 VDC Connectors: 3: Female XLR, 2: Male XLR, 1: 1/4" TRS, DC Power Jack Size: 5.3" x 3.7" x 2" Weight: 1 lbs. Current drain 15ma nominal one mic 15vdc
|
