| PA202 Stereo 20w/ch class D amp Small general purpose audio power amplifier for projector, ceiling mount, or rack monitoring. Great for boardroom and classroom applications. PA202 Stereo 20w/ch class D amp
Small general purpose audio power amplifier for projector, ceiling mount, or rack monitoring. Great for boardroom and classroom applications. Ideal for small space installations where a larger amplifier won\'t fit. Works with 4 or 8 ohm loads. Has bridge switch for higher power mono and a limiter. Included 24 VDC inline IEC power supply.

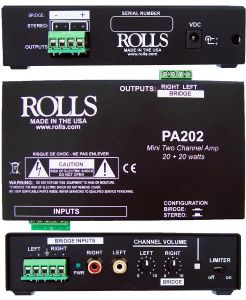

PA202 Stereo 20w/ch class D amp
Small size with mounting tabs
Balanced and Unbalanced Inputs
Phoenix type input and output
Low cost, helps win your bid
Optical Limiter for maximum clean power output
Bridge switch for 40W mono operation
Included 24 VDC inline IEC power supply
Specifications Input Connectors: Screw Term & Dual RCA
Outputs Connectors: Screw Terminals
Max Gain: 34 dB/Channel
Bandwidth: 20 - 25KHz
Voltage Gain: 32 dB
Input Sensitivity: 28 mV
Included 24 VDC inline IEC power supply.
Line Input Impedance: 47K Ohms
Power Output: 20 watts X 2 @ 4 Ohms, 40 watts bridge @ 8 Ohms
Maximum Supply Voltage: 30 VDC
THD: .05% typical
EIN: 3 mV
Efficiency: 85%
Cooling: Confection Cooling (No Fans)
Standby and Idle Current Draw: .005/.01 Amps
Signal to Noise: >100 dB
Size: 4.25 x 1.5 x 2.375 (W x H x D)
Weight: 1 lb.
|
