PM351 ,personal monitoring device with 1/4\" TRS stereo/mono Line In

ROLPM351

view large image

PM351,personal monitoring device with 1/4\" TRS stereo/mono Line In,1 XLR Microphone in & hard-wired XLR pass-through, 1/4\" stereo/mono Instrument input with2 transformer-balanced/isolated XLR Outs.

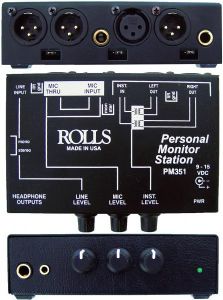

PM351 Personal Monitor System

The PM351, like its predecessor the PM350b, is a personal monitoring device with a 1/4\" TRS stereo/mono Line Input,a single XLR Microphone input and hard-wired XLR pass-through, and a 1/4\" stereo/mono Instrument input with two transformer-balanced and isolated XLR Outputs. All three of these inputs are also routed via individual Level controls, to a 1/4\" and an 1/8\" (3.5mm) Phone Output. The Mic Through, and Instrument outputs have jumpered Ground Lifts for elimination of ground hum. The PM351 is ideal for live bands and church musicians, as well as studio musicians and singers. Having the ability to monitor a main mix along with the musician\'s voice and their instrument make the PM351 an effective and versatile tool.

PM351 Personal Monitor System
    1/4” TRS stereo/mono Monitor Input
    XLR Mic Input w/pass-through
    1/4” TRS stereo Instrument Input
    All mix to 1/4” and 1/8” Outs
    Individual Level controls
    Stereo balanced Instrument DI outs
    Hookup www.rolls.com/apps/pm350bconnect1.jpg
Specifications

    Max Input Level: -20 dB XLR, +40 dB Line, +15 dB Instrument
    Instrument Input Impedance: 50K Ohms
    Instrument Output Frequency Response: 10 - 30 kHz +/- 3 dB
    Output Impedance, Headphone: 10 Ohms
    Output Impedance, Instrument: 2: 100 Ohms balanced
    Gain: 20 dB 1/4", 50 dB XLR
    Headphone Frequency Response: 20 - 20 kHz
    Power: 9 - 16 VDC
    Size (W x H x D): 4.5" x 3.3" x 1.5"
    Weight: 1 lb (.45 Kg)
    Current drain 25ma nominal no signal 15vdc

RRP: $179.00 inc GST
