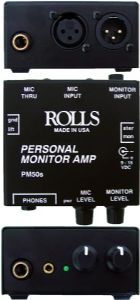

| PM50s mixes a stereo or mono line-level Monitor signal with a mic level XLR microphone signal to a set of headphones or earphones. PM50s Personal Amp
The PM50s mixes a stereo or mono line-level Monitor signal with a mic level XLR microphone signal to a set of headphones or earphones. It has a monitor level control, mic level control, mic pass through XLR jacks, two headphone output jacks, and a stereo TRS 1/4" monitor input jack. Possible users may be drummers who need to hear a click track, choir singers who need to hear themselves, etc. The power adapter is included.
PM50s Personal Amp
XLR Mic In & Pass Thru
Ground Lift on XLR Thru
Mono or Stereo 1/4" Monitor Input
1/4" and 1/8" Phone Outputs
Lots of output level, it's loud
Specifications
Inputs: -20 dB max XLR 1K balanced, 20 dB monitor
Outputs: 1/4", and 1/8" (3.5mm) 8 ohm or greater
Gain: 20 dB 1/4", 50 dB XLR
Bandwidth: 20 - 20K Hz
S/N Ratio: 90 dB
Power: 9-18 VAC/DC, 9-24 VDC
Size: 3" X 2.5" X 1.25"
Weight: 1 lb (.45 kg)
Current drain 60ma nominal no load 15vdc
|
