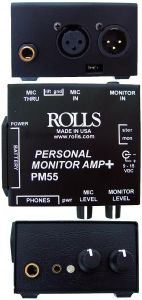

PM55 Personal Monitor System
M55 Personal Monitor System
The PM55 is designed for performers who need to monitor their own signal, such as their vocal, with the main mix. The unit has become very popular with drummers who need to mix a click with a monitor signal. And many sound technicians use the PM55 as a quick line tester to troubleshoot audio systems. Operates on either one 9 volt battery (alkaline preferred) or the included PS27s power supply. The PM55 also has an included belt clip.
PM55
XLR Mic In & Pass Through
Ground lift on XLR signal
Stereo/Mono 1/4" Monitor Input
3.5mm and 1/4" Headphone outputs
Powered by one 9 volt battery or the included PS27s power supply
Lots of output level, it's loud
Belt clip is included
Specifications
Max Input Level: -20 dB XLR, 40 dB Monitor
Input Impedance: 600 Ohm Mic, 22k Ohm Monitor
Output Impedance: 10 Ohms
Gain: 15 dB 1/4", 50 dB XLR
Bandwidth: 50 Hz - 20 kHz
S/N Ratio: 90 dB
Power: 9 - 15 VDC
Size: 3" x 2.5" x 1.25" (7.6 x 6 x 3.2 cm)
Weight: 1 lb (.45 Kg)
Current drain 60ma nominal no load 15vdc
And many sound technicians use the PM55 as a quick line tester to troubleshoot audio systems. Operates on either one 9 volt battery (alkaline preferred) or the included PS27s power supply. The PM55 also has an included belt clip.
