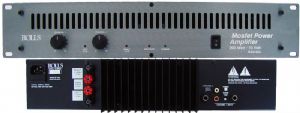

RA2100b stereo100W/channel RMS power amplifier in 2 rack space for professional audio and distributed musical applications. The unit features 100 Watts per channel RMS into four ohms, RA2100b Professional Power Amp
The RA2100b is a stereo 100W/channel RMS power amplifier in a standard 2 rack space format. It is intended for professional audio and distributed musical applications. The unit features 100 Watts per channel RMS into four ohms, 85 Watts per channel into eight ohms, and for the contractor - 70 Volts / eight ohms. The unit also features MOSFET drivers in a voltage and current gain circuit and a one-second input turn-on delay. The RA2100b will drive 25 Volt speaker lines directly from each channel, or 70 Volt lines bridged.
RA2100b Professional Power Amp
100 Watts RMS per output (4 Ohm).
85 Watts RMS per output (8 Ohm).
200 Watts RMS into 70 Volt (8 Ohm).
1/4" and RCA inputs.
Fault Protected Output Stage.
Specifications
Power Output, Stereo: 100 Watts RMS/ch. 4 Ohms, 85 Watts RMS/ch. 8 Ohms
Bridged: 200 Watts into 70 Volt or 8 Ohms
Minimum Load Impedance: 4 Ohms (8 Ohms bridged)
Sensitivity: <1 VRMS for full output
THD: <.05% (500 Hz @ 1 Watt)
IMD: <.05%
S/N Ratio: >95 dB A Weighted
Power Bandwidth: 70 - 30 kHz +/- 3 dB
Damping Factor: >150
Slew Rate: 100 V/microSecond
Phase Shift: <10 Deg., 20 Hz - 20 kHz
Input Impedance: 10 K Ohms balanced
Power: 120 VAC 60 Hz 2.5A, 230 VAC 50 Hz
Size: 19" x 3.5" x 7.5" (48 x 9 x 19 cm)
Weight: 12 lbs (5.5 kg)
|
