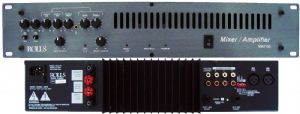

MA2152 Stereo/70v Mixer Amplifier 100w/Ch or 200w Mono

The MA2152 is a two rack space mixer amplifier designed for restaurants, schools, churches, clubs etc. The unit provides a compact and efficient way to mix up to three sources such as AM/FM tuners, CD players, and video players with up to two microphones. Priority talk-over is provided on Microphone One for paging, and on Source Three for a jukebox, telephone, etc. The power output section may be connected to 4, 8, or 16 ohm speakers, or directly connected to a 70 volt system without the need for additional transformers. Several configuration options are possible including full stereo, mono 70V, dual mono 25V, etc..
    Two Microphone inputs with phantom power.
    Tone controls for each Mic input.
    Three stereo Source inputs.
    Bass and Treble controls on Sources One and Two.
    Priority ducking on Mic One and Source Three.
    Stereo pre-master level Record Output.
    Fault protected power amp.
    Amp will drive 25 or 70 volt lines directly.
    FR4 Double-sided epoxy circuit board.
    Socketed ICs.
    Made in the U.S.A.
Specifications
    MIXER:
    Input Impedance:
    Mic: 600 Ohms XLR balanced
    Source: 22K Ohms RCA
    Insert: 22K Ohms 1/4" TS unbalanced
    Max Input Level:
    Mic: -14 dBV Mic level Max
    Source: 24 dBV
    Insert: + 20 dB
    Connectors: 2: XLR, 6: Stereo RCA, 3: 1/4" TRS, 1: 1/4" TS
    Phantom Power: +12 VDC
    Max Gain:
    Mic: 60dB
    Source: 26 dB
