| MB15 ProMatch converts consumer level stereo RCA signals to balanced XLR professional line level, and back. One side of the unit, labeled 1, has two XLR inputs and stereo RCA outputs. MB15b Promatch and More

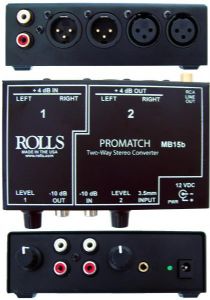

The MB15 ProMatch converts consumer level stereo RCA signals to balanced XLR professional line level, and back. One side of the unit, labeled 1, has two XLR inputs and stereo RCA outputs. The other side labeled 2, has stereo RCA inputs and two XLR outputs. Each side has stereo level controls, and an LED indicates that power is applied to the unit. An additional benefit of the MB15 is that it will act as a balanced XLR line level control. By adding a stereo pair jumper between the four RCA jacks (connecting ins to outs), the two Level controls may be inserted into any balanced XLR line.
MB15b Promatch and More
Stereo Direct Box
Stereo RCA to stereo XLR
Stereo Level control for each channel
Works as stereo balanced line level control
1/8” Headphone level to line level adapter
Specifications
Max Out: Balanced: +18 dB, Unbalanced: +12 dB
Max In: Balanced: +22 dB, Unbalanced: +22 dB
Input Impedance: RCA : 100k Ohm, XLR: 10 k Ohm, 1/8” stereo: 10k Ohm
Output Impedance: RCA: 100 Ohm, XLR: 100 Ohm balanced
Noise Floor: -88 dB
Gain: +4 dB In: -8 dB, -10 dB In: + 20 dB
THD: .003%
Power: 12 VDC adapter (center negative)
Size: 4.15” x 2.46” x 1.55”
Weight: 1 lbs. (.45 Kg)
Current drain 16ma nominal no load 15vdc
|
