| The MO2020 is designed to provide a sine wave, or square wave via 1/4" unbalanced
jacks, for testing audio devices. The units frequency output varies from 20Hz to 24kHz MO2020 Testoscillator

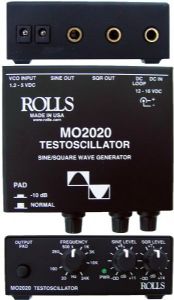

The MO2020 provides a sine and square wave output on two 1/4" jacks. The frequency range is variable from 20Hz to 24kHz, it accepts a 1.2 to 5 volt dc input on a 1/4" jack for external frequency control, and a 10 dB Output Pad is included to provide a -10 dB reference signal.
The MO2020 is designed to provide a sine wave, or square wave via 1/4" unbalanced
jacks, for testing audio devices. The units frequency output varies from
20Hz to 24kHz
SPECIFICATIONS
Output Level: +11 dB Sine +14 dB Square
Output Impedance: 100 Ω
THD (Sine): <1%
Size: 4.25" x 3.75" x 1.75"
Power: 12 - 16 Volts DC 50 mA
|
