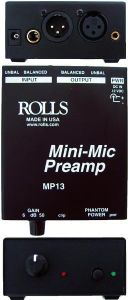

The MP13 is a small, simple, and inexpensive microphone pre amplifier for a variety of applications. The unit has XLR and 1/4" Outputs, XLR and 1/8" Inputs, and a single Gain control with a Clip indicator. Switchable Phantom Power is included for use with a condenser microphone. The unit comes complete with a power adapter.
MP13 Mini-Mic Preamp
Small size
Works with dynamic, Phantom and Head-set mics
XLR and 3.5mm inputs
XLR and 1/4" outs
Works with 9 to 15 Vdc
Specifications
Input Impedance: 10K Ohms balanced/unbalanced
Max Input Level: +4dBV XLR balanced, +10dBV unbalanced
Max Gain: XLR 60dB, 1/4" 54dB
Phase Shift: <10 deg. 20 Hz - 20 kHz
EIN: -108dB max.
THD: <.01%
IMD (SMPTE): < .01%
CMRR: >80 dB
Phantom Power: +24 Volts, 6 mA
Power: 12-15VDC
Size: 3.4" X 4.2" X 1.4"
Weight: 1 lbs (.45 kg)
|
