| DB225 PROFESSIONAL DIRECT BOX is transformer balanced, passive. It has a Ground Lift switch for hum elimination, an Attenuator switch for padding input signal from -20 or -40dB. DB225 PROFESSIONAL DIRECT BOX
Rolls » Accessories » Interface »

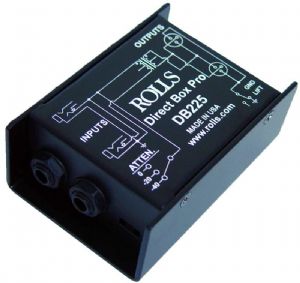

The DB225 is a transformer balanced, passive professional direct box. It features a Ground Lift switch for hum elimination, and an Attenuator switch for padding the input signal from -20 or -40dB. Padding the input signal provides a way to connect the DB225 to a line level signal, even a speaker level signal and connecting it to a balanced line or Mic input on a mixer. The two 1/4 inch; inputs are paralleled pass-through to also send the input signal to a tuner, pre amp, etc..
DB225
Attenuator switch to select the exact level you want
Ground lift switch to help eliminate ground loops
Very heavy all metal chassis
small compact size
MADE IN USA!!! This product will last.
Specifications
Frequency response 20 - 20K Hz + - 1dB
Output imp. 600 ohms
Input Impedance 50K ohms
Max output level +4 dBm
Weight 1 lb, 0.45kg
Size 4.15L X 2.75 X 1.55
|
