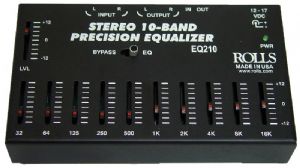

EQ210 is a small Stereo graphic 10 BAND EQ that enables you to boost or cut the signal at 10 different frequency points. EQ210 Stereo graphic EQ
Rolls » Accessories » Signal Processors »
The EQ210 is a small graphic EQ that enables you to boost or cut the signal at 10 different frequency points. The EQ210 is perfect for installations, and since it is stereo it’s great for use with desktop speakers, mixers and powered speakers, mic-preamps, keyboards, computers and more.
EQ210 Stereo equalization 10 frequency controls on standard ISO centers 12 dB of signal boost or cut for each frequency level control Overall Level control with 12dB of signal boost or cut Active Bypass switch in the event of a power loss Stereo RCA and 1/8” (3.5mm) Input and Output jacks 12 VDC power adapter included
Specifications Input Impedance: 50K Ohms Nominal Output Impedance: 100 Ohms Max Input Level: +24 dBV Max Output Level: +14 dB Center Freq: +/-5% Standard ISO Boost/Cut Range: +/- 12 dB Bypass Switch: Active Frequency Response: 20 - 20 kHz +/- 1 dBV Dynamic Range: 95 dB A Weighted S/N Ratio: 85 dB Power: +/- VDC 150 mA (center neg.) Size: 6.4 x 3.7 x 1.125 inches Weight: 1 lb.
|
