| HA204p 4 channel Portable battery headphone monitoring device designed for the recording studio, or other professional applications. Each output boasts a whopping 20 dB of clean channel gain. HA204p Portable Battery Operated Headphone Amp
Rolls » Headphone Amplifiers and Personal Monitor Systems »
The HA204p is a full frequency response, four channel headphone monitoring device designed for the recording studio, or other professional applications. Each output boasts a whopping 20 dB of clean channel gain.

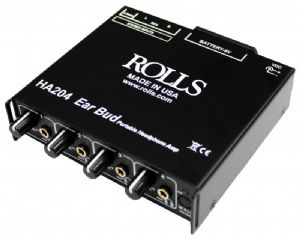

HA204p Portable Battery Operated Headphone Amp
Stereo 1/8 and Dual RCA Inputs
Rotary Volume controls
AC adapter included
15-35k Hz frequency response
Lots of output level.... its loud!
9V battery Operated
Specifications
Input Impedance: 47k Ohms
Max Input Level: +13 dBV adapter, +8 dBV Battery
Input Connectors: TRS Stereo 1/8, Dual RCA
Outputs: 4 - TRS Stereo 1/8 (3.5mm)
Output Impedance: 10 Ohms each output
Max Gain: 20 dB/Channel
S/N Ratio: >90 dB
THD: < .008%
IMD (SMPTE): <.008%
Nominal Current Draw: 30 Mills Min./ 400 Mills Max.
Expected Battery Life: 8 Hours Continuos use
Frequency Response: 15-35K Hz.
Recommended Headphone Impedance: 16 to 500 Ohms.
Power: 15 VDC (Rolls Model PS27s)
Weight: .85 lb
Size: 4.5 x 1.125 x 4.5
|
