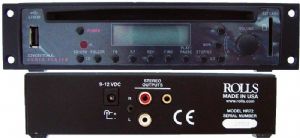

The HR72 is a 1/2 rack space CD/MP3/USB/SD/MMC player. The unit is ideal for installation applications like restaurants, clubs, schools, churches, or aerobic studios to name a few. The HR72 plays standard audio CDs as well as CDs formatted with MP3 files. The single rack space height makes it convenient to install in most any professional audio rack.
HR72 CD MP3 Player
Plays standard CDs as well as discs with MP3 files
RCA and 1/8" (3.5 mm) Outputs
Track programming
Repeat All, One, and Shuffle play
Output Level control
Accepts 12cm and 8cm discs
Plays files from standard SD cards
Plays files from a USB thumb drive
Pitch Control to adjust tempo or fine tune pitch
Specifications
SOFT TACT BUTTONS: POWER, SD/USB/CD, FOLDER, FB (Fast Back), F.F (Fast Forward), PLAY/PAUSE, REV, FWD, STOP/EJ, PITCH CONTROL: HI, NOR (Normal), LO
Power: 12-15V DC 700mA
Connectors: 1/8" (3.5 mm) Tip-Ring-Sleeve stereo, and stereo RCA Outputs
Dimensions: 6.75" X 1.7" X 8"
Weight: 2.5 lbs. (1.3 kg)
Current drain 400ma nominal disc loaded 15vdc
|
