The SS32 is a passive stereo or mono signal switching device designed to route a single signal to three outputs one at a time, or three input signals to a single output. All Contacts are make before break.

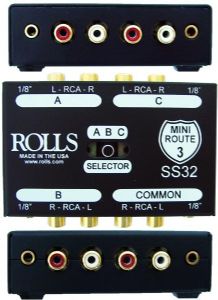

SS32 mini route 3
1/8" stereo and stereo RCA's all channels
Small size 3.75" X 2.25" X 1.25"
Passive, no power needed
All Connections are direct, no added impedance
Specifications
Connectors: 4 ea; 1/8” Tip-Ring-Sleeve jacks
Connectors: 4 ea; RCA stereo jacks
Switch: Triple throw / double pole selector switch
Contacts: Make before Break
Size: 3.75” W x 1.25” H x 2.25” D
Weight: 1 lbs.
|
