The SX45 is a unique frequency dividing device for small sound reinforcement applications. The unit features a 12 dB/Octave roll off rate, a frequency dividing range of 50Hz to 2.5kHz, and an external power supply for noise reduction.

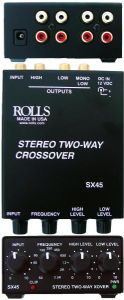

The SX45 Stereo Two-Way Crossover
12 dB/Octave rolloff
Stereo RCA Input and Outputs
50Hz to 2.5 kHz crossover range
Mono Sub Output
Specifications
Input Impedance: 10K Ohm
Output Impedance: 1K Ohm
Headroom: +10 dBV
Power Requirements: 12 - 16 VDC, 150 mA;
Size: 4.25" x 3.625" x 1.5"
Weight: 1 lb.
|
