The ABC904 is a passive stereo or mono signal switching device designed to route a single signal to three outputs, or three input signals to a single output. For the guitarist, the ABC904 is used to select between three guitars to a single amplifier, or possibly a single guitar switched to three separate amplifiers.

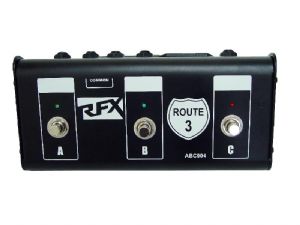

ABC904 Route Three
1/4" Tip-Ring-Sleeve jacks
Uses a single 9V battery to power the indicator LEDs
Housed in a sturdy 13 gauge (.090 in.) steel chassis
Specifications
Connectors: 5 ea; 1/4” Tip-Ring-Sleeve jacks
Indicators: 3 ea; T1 LEDs (1 Green, 1 Blue, 1 Red)
Switches: 3 ea; Triple pull / double throw push switches
Power: 9 Volt (for the LEDs)
Size: 4” W x 1.9” H (at highest point) x 4.13” D
Weight: 3 lbs.
|
