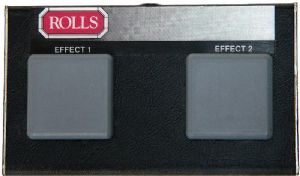

The RP8 is a dual momentary contact foot switch with a single TRS 1/4" input/output connector. The sleeve of the jack is common to the 2 switches and the tip connects to one switch and the ring to the other. When a switch is pressed the tip or ring is shorted to the sleeve. This is intended for general purpose use where a momentary switch is needed as on some guitar amps, keyboard sustain pedals, etc.. he RP8 Dual Momentary Foot Switch
1/4” TRS Connection 2 Momentary Normally OFF switches
Specifications
Momentary switches: Effect 1 grounds the tip, Effect 2 grounds the ring Compact Size 3 X 5 X 1 inch
|
