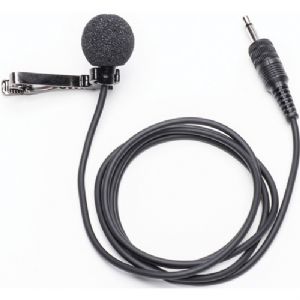

The Azden EX-503L is a basic omnidirectional lavalier microphone that combines good sound, durability and excellent sensitivity. This model features an 1/8" mini connector with lock-down terminal.
CompatibilityDesigned to be used with the 10BT, 15BT, 30BT, 35BT and 32BT bodypacks
TransducerElectret Condenser
Polar PatternOmnidirectional
Sensitivity64dB +/1 4dB (0dB=1V/0.1 Pa) @1KHz/2.2K ohms/3V bias
Frequency ResponseApproximately 50 Hz - 18 kHz
Maximum Input Sound Level Approximately +/- 93dB
Impedance2kΩ @ 1 kHz
Output Connectors 1/8" (3.5 mm) Mini-Jack Lock Down Connector
Power Requirements Bias voltage of 2 to 10 VDC
Current Draw 0.5 mA
