| CAD 210 Omni Variable Line Output Button miniature-boundary mic designed for installation in security, ambient monitoring and observation applications. Internal audio limiter circuitry controls HSPL CAD Astatic Boundary Series: 210
The CAD Astatic 210 is a miniature-boundary microphone designed for installation in security, ambient monitoring and observation applications. The output level is variable from -50dBv (3.2mV) to -10.5dBV(300mV) @ 1́Bar which is designed to interface with security cameras, digital video recorders and other observation and recording devices.
Astatic’s internal audio limiter circuitry tames high sound pressure levels and improves intelligibility by protecting the audio signal from distorting sensitive recording circuitry in cameras and digital recorders. The integrated volume control is located on the side of the microphone and is protected from tampering when the microphone is installed. The integrated 150Hz, 6dB/oct high-pass filter attenuates unwanted low frequency energy.

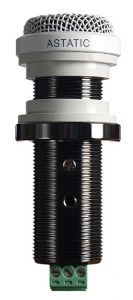

The Astatic 210 housing is all-metal, designed for commercial applications. The threaded housing makes for easy installation into ceilings, walls, tables and other surfaces. Rubber isolation bushings and metal nut/washer hardware are also provided.
Specifications:
Operating Principle: Condenser
Polar Pattern: Omnidirectional
Frequency Response: 120Hz -18KHz
Sensitivity: Adjustable, -50dBV (3.2mV) to -10.5dBV (300mV) @1́Bar
Impedance: 50 ohms
Maximum SPL: 100dB
Self Noise: 22dBA
Power Requirements: 8 to 18VDC, 70mA
|
