AD Astatic 910B are low-noise, cardioid, condenser, mini-gooseneck microphones. They are ideal for use in houses of worship, government, corporate meeting rooms and public address. Their wide, smooth frequency response characteristics provide natural, articulate and transparent sound. Their cardioid polar pattern minimizes annoying feedback when used close to sound reinforcement speakers and monitors, while reducing the pickup of unwanted off-axis sources. Their advanced, transformerless electronics are self-contained to simplify installation.

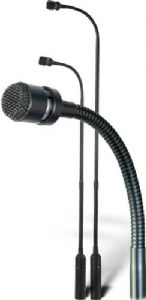

Astatic 910B microphones include a solid center section with flexible goosenecks at the top and bottom. The top gooseneck is 1/4" in diameter and the bottom gooseneck is 19/32" in diameter. The 910B utilizes a single 1/4" diameter gooseneck. The goosenecks are well-lubricated, silent in operation while maintaining strong positional memory. The overall length is 10 15/16". The durable matte-black non-reflective paint assures an unobtrusive installation. The foam windscreen, shock mount and locking flange mount are included. Standard P12, P24 or P48 phantom power is required.

Specifications

Operating Principle: Condenser
Polar Pattern: Cardioid
Frequency Response: 150Hz - 20kHz
Impedance: 440 ohms
Self Noise: 26dBA
Max SPL: 132dB, 1% THD
Power Requirements: P12, P24, P48, 5mA
Polarity: Positive pressure on diaphragm
corresponds to positive voltage
on pin 2 relative to pin 3.
Finish: Durable matte-black urethane
Net Weight [Mass]: 3.4 oz
