CAD ASTATIC Variable Polar Pattern - 1600VP

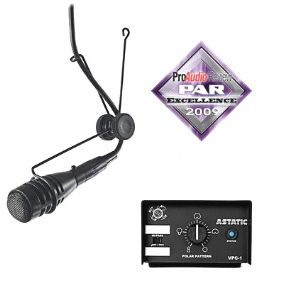

The 1600VP is a continuously-variable pattern condenser hanging microphone system with remote polar control and anti-rotational positioning mount. The variable polar pattern with remote control allows the user to precisely adjust the shape of the pick-up pattern for best performance from a remote location. Utilizing a two-conductor shielded cable (max length 2,000 feet) between the microphone head and the pattern control box, the user can adjust the polar pattern in real time without changing capsules, microphone positions, or inducing noise in the audio chain.
Special attention has been given to the frequency response and sensitivity of the microphone while utilizing the variable-pattern control to precisely alter the shape of the pick-up pattern. The large diameter, low-noise elements produce a frequency response of 40Hz to 20KHz with a selectable, recessed 80Hz, 12dB/octave high-pass filter that removes unwanted low-frequency energy when engaged. The filter control is conveniently located on the control box.
The 1600VP is primarily designed for recording and sound reinforcement of choirs, instruments and ambient miking. The 1600VP can also be used for vocal pick-up in government, institutional and business applications. The 1600VP is designed to be suspended from a ceiling. The optional miniature-boom (MB-1), allows the microphone system to be used on a free-standing microphone post.
|
