Description

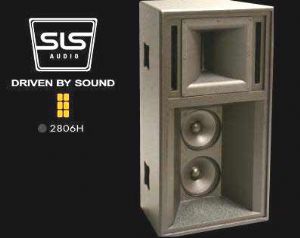

The 2806H is a bi-amp high output speaker. Its primary application is use as a sound source that requires high output with controlled directivity.

The 2806H high frequency section features a high performance PRD1000 planar ribbon transducer designed and manufactured by SLS Loudspeakers. The unique design and properties of the planar ribbon driver allows for a very clear delivery and transient accuracy even at the limits of its performance. The PRD1000 is mounted on a 80 degree waveguide to match the dispersion of the midrange at crossover.

The midrange section uses dual 8” drivers mounted on a wave guide. The drivers feature a large vented magnet structure with a flux demodulation ring magnet system which divides by 3 the harmonic distortion in the lower frequency domain and reduces the inductance modulation by 50%, leading to a dynamic and stable sound quality.

Developed for a wide range of professional applications where the high quality and intelligibility of sound is required

Portable PA  Stage Sidefills High SPL spot fill Engineered Clusters
